Gantry Shear Blade Adjustment Guide for Cleaner and More Accurate Cuts

Technical Overview of Gantry Shear Blade Mechanics

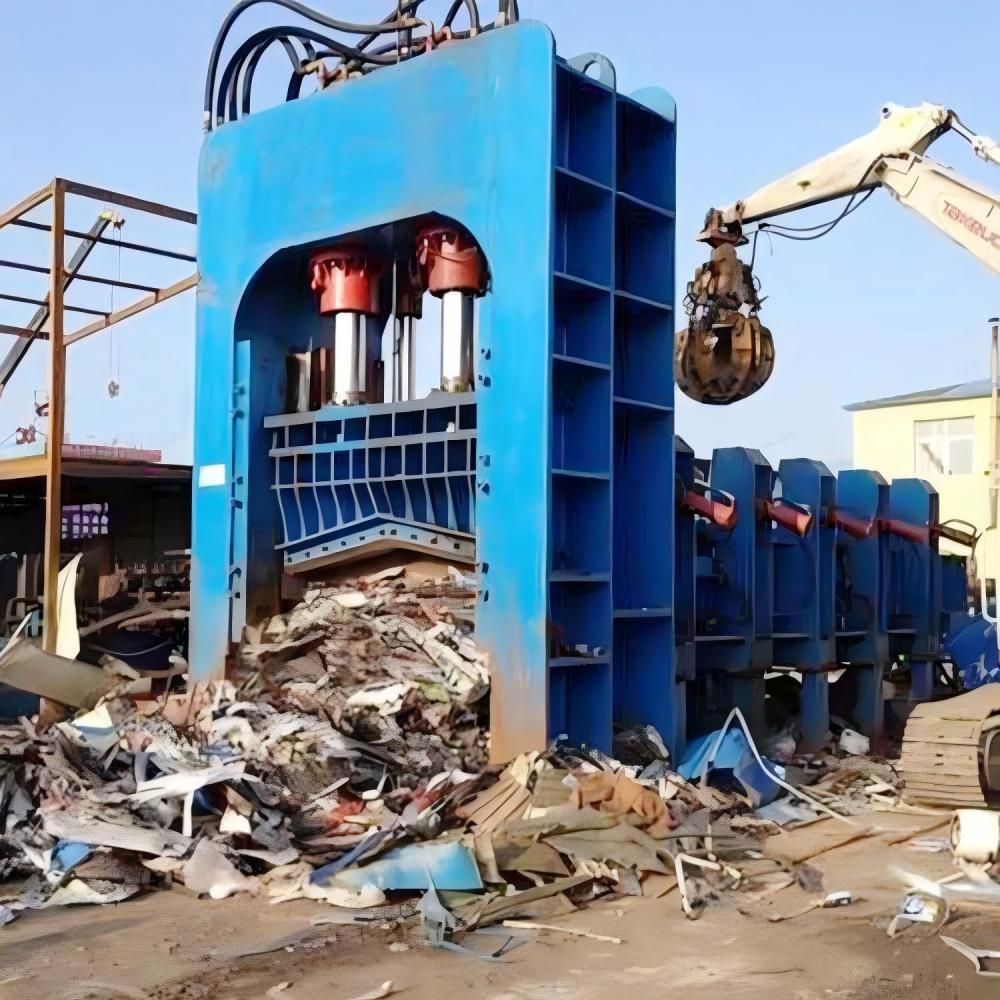

In the world of heavy-duty metal recycling and industrial fabrication, the gantry shear stands as a titan of efficiency. However, the performance of this massive machine is ultimately dictated by the precision of its cutting edge. Achieving cleaner and more accurate cuts is not merely a matter of hydraulic power; it is a science of geometry and mechanical alignment. The gantry shear blade adjustment guide for cleaner and more accurate cuts begins with understanding the fundamental physics of the shearing process. When the upper blade descends toward the lower fixed blade, the material undergoes three distinct phases: initial plastic deformation, penetration, and finally, fracture. If the blade adjustment is incorrect, these phases are disrupted, leading to excessive burrs, material deformation, and unnecessary wear on the machine’s hydraulic components.

The structural integrity of a HARSLE gantry shear is designed to minimize deflection during the cutting cycle. This rigidity is crucial because even a microscopic shift in the blade carrier can alter the blade clearance, resulting in a ‘ragged’ edge. A cleaner cut is characterized by a smooth burnished zone and a uniform fracture zone. To achieve this, the operator must ensure that the blade gap is perfectly calibrated to the thickness and tensile strength of the material being processed. This technical guide delves into the nuances of blade positioning, the importance of the rake angle, and the systematic approach required to maintain peak cutting performance over thousands of cycles.

Furthermore, the environment in which a gantry shear operates—often scrap yards or heavy industrial plants—presents challenges such as thermal expansion and debris accumulation. These factors can subtly shift the blade alignment over time. Therefore, the gantry shear blade adjustment cleaner more accurate cuts process is not a one-time setup but a continuous maintenance requirement. By mastering the adjustment techniques outlined in this guide, operators can significantly extend the life of their blades, reduce energy consumption, and produce a higher quality of sheared product that meets the stringent requirements of steel mills and foundries.

Core Parameters Influencing Cut Quality

To achieve the goal of cleaner and more accurate cuts, several core parameters must be synchronized. The most critical of these is the blade clearance, also known as the ‘blade gap.’ This is the horizontal distance between the upper and lower blades as they pass each other. If the gap is too narrow, the blades may collide or create double-shearing, which consumes excessive power and damages the blade edges. Conversely, if the gap is too wide, the material will bend or ‘fold’ between the blades, resulting in a heavy burr and a distorted cut edge. The ideal clearance is typically a percentage of the material thickness, varying based on the material’s ductility and hardness.

Another vital parameter is the rake angle, which is the slope of the upper blade relative to the lower blade. A higher rake angle reduces the required shearing force because it decreases the amount of material being cut at any single moment. However, a high rake angle can also increase the tendency of the material to twist or bow. For gantry shears processing thick scrap or heavy plates, finding the ‘sweet spot’ for the rake angle is essential for balancing machine longevity with cut precision. HARSLE machines often feature adjustable or optimized rake angles to accommodate a wide range of scrap profiles, from rebar to heavy I-beams.

Blade material and sharpness also play a non-negotiable role. Most industrial gantry shear blades are manufactured from high-carbon, high-chromium tool steels like Cr12MoV or 6CrW2Si. These materials are heat-treated to achieve a specific hardness (usually HRC 55-60). As the blades dull, the ‘cleaner’ aspect of the cut diminishes, and the ‘more accurate’ aspect suffers as the material is pushed rather than sliced. Regular inspection of the blade radius is a core part of the gantry shear blade adjustment guide for cleaner and more accurate cuts. Even a slight rounding of the cutting edge can increase the required cutting force by up to 30%, putting undue stress on the hydraulic cylinders and the gantry frame.

Calculation Method for Optimal Blade Clearance

Calculating the correct blade clearance is the cornerstone of the gantry shear blade adjustment cleaner more accurate cuts strategy. The general formula used by engineers is C = k × t, where C is the clearance per side, t is the thickness of the material, and k is a constant determined by the material type. For standard mild steel, the constant k usually ranges from 0.05 to 0.10. This means the gap should be approximately 5% to 10% of the material’s thickness. For harder materials like stainless steel, the gap must be tighter (around 3-5%) to ensure a clean fracture, whereas for softer materials like aluminum, a slightly wider gap may be permissible to prevent galling.

When adjusting a HARSLE gantry shear, the operator should first measure the thickness of the thickest piece in the batch. For example, if shearing 20mm thick steel plate, a 10% clearance would result in a 2mm gap. However, in scrap processing where material thickness varies, the machine is often set to a ‘median’ clearance that handles the bulk of the material safely. It is important to note that the clearance must be uniform across the entire length of the blade. This is verified using feeler gauges at multiple points along the bed. Any deviation indicates that the blade seat or the gantry guides may need adjustment or repair.

Beyond the basic formula, advanced operators also consider the ‘shear strength’ of the material. High-strength alloys require more precision. If the clearance is not perfectly calculated, the energy released during the fracture phase can cause ‘shock loading’ in the hydraulic system. This is why the gantry shear blade adjustment guide for cleaner and more accurate cuts emphasizes the use of precision measuring tools. Relying on visual estimation is the primary cause of premature blade failure and poor cut quality in the metal fabrication industry.

Blade Clearance Parameter Table

The following table provides a reference for setting blade clearances on a standard gantry shear to achieve cleaner and more accurate cuts across various materials and thicknesses.

Common Engineering Mistakes in Blade Adjustment

One of the most frequent mistakes identified in the gantry shear blade adjustment guide for cleaner and more accurate cuts is the failure to account for ‘blade seat wear.’ Over years of operation, the recessed area where the blade sits can become deformed or compressed. Even if the operator sets the gap correctly at the bolts, the center of the blade may ‘bow’ under pressure, leading to an inconsistent cut. This is often misdiagnosed as a dull blade, leading to unnecessary sharpening when the real issue is the mechanical support of the blade itself. Regular shimming or machining of the blade seats is necessary to maintain accuracy.

Another common error is ignoring the temperature of the machine and the material. In high-volume operations, the friction of shearing generates significant heat. This heat causes the blades and the gantry slide to expand. If the clearance was set ‘cold’ at a very tight tolerance, the expansion might cause the blades to rub or seize as the machine reaches operating temperature. Professional operators always allow the machine to warm up and then re-verify the clearance. This is a critical step for achieving gantry shear blade adjustment cleaner more accurate cuts in 24/7 production environments.

Furthermore, many operators neglect the condition of the gibs and ways. The gantry moves within precision guides; if these guides have excessive play, the upper blade will ‘kick back’ during the cut. This lateral movement destroys the calculated clearance the moment the blade touches the metal. A ‘cleaner’ cut is impossible if the gantry is not tracking perfectly straight. Therefore, any guide for blade adjustment must also include a directive to check and tighten the gantry slide liners to ensure that the vertical travel is perfectly perpendicular to the lower blade bed.

Selection Checklist for Gantry Shear Blades

When selecting new blades or evaluating your current setup for cleaner and more accurate cuts, use the following checklist to ensure all technical requirements are met:

• Material Compatibility: Ensure the blade grade (e.g., H13, D2, or S7) matches the tensile strength of the scrap you process most frequently.
• Hardness Verification: Check the Rockwell hardness (HRC) certificate. Blades that are too hard will chip; blades that are too soft will dull rapidly.
• Dimensional Accuracy: Verify that the blade thickness and height are uniform within +/- 0.05mm across the entire length.
• Bolt Hole Alignment: Ensure bolt holes are precision-drilled to prevent ‘walking’ or shifting of the blade during high-tonnage cycles.
• Surface Finish: A ground finish on the blade faces reduces friction and helps in achieving a cleaner cut by allowing the material to slide during the initial deformation phase.
• Edge Radius: For new blades, the edge should be sharp but with a microscopic ‘honing’ to prevent immediate chipping upon the first heavy cut.
• Supplier Reputation: Choose blades from manufacturers like HARSLE who understand the specific kinetic requirements of gantry-style shearing.

Frequently Asked Questions (FAQ)

How often should I adjust the blade clearance on my gantry shear?

Blade clearance should be checked at the start of every shift and adjusted whenever there is a significant change in the thickness or type of material being processed. For consistent material, a weekly deep-check with feeler gauges is recommended to account for any vibration-induced shifting of the adjustment bolts.

Why is my gantry shear producing a large burr on the bottom of the cut?

A large burr is almost always a sign of excessive blade clearance. When the gap is too wide, the material is pulled into the gap and stretched before it finally fractures, creating a sharp, protruding edge. Reducing the gap according to the gantry shear blade adjustment guide for cleaner and more accurate cuts will resolve this.

Can I sharpen gantry shear blades myself?

While minor honing can be done on-site, professional regrinding is highly recommended. Gantry shear blades must be ground on a precision surface grinder to ensure the faces remain perfectly flat and parallel. Improper hand-grinding can create ‘soft spots’ due to heat or uneven edges that make accurate adjustment impossible.

What are the signs that my blades are too tight?

If the blades are too tight, you will notice a ‘double-cut’ appearance on the edge, excessive noise (a loud ‘bang’ rather than a ‘crunch’), and visible scoring or ‘shiny spots’ on the sides of the blades where they are rubbing against each other. This is a dangerous condition that can lead to blade breakage.

Does the rake angle affect the accuracy of the cut?

Yes. A higher rake angle can cause the material to ‘creep’ or move laterally during the cut, which can affect the dimensional accuracy of the finished piece. For high-precision shearing, a lower rake angle is preferred, though it requires more hydraulic force from the machine.

How do I know if my gantry guides need adjustment?

If you set the blade clearance correctly but still see inconsistent cut quality across the length of the blade, or if the machine vibrates excessively during the stroke, the gantry guides (gibs) likely have too much play. This allows the upper blade to deflect under load, ruining the precision of the cut.
