Ursprünglicher Preis war: $45,000.00$41,000.00Aktueller Preis ist: $41,000.00. Set

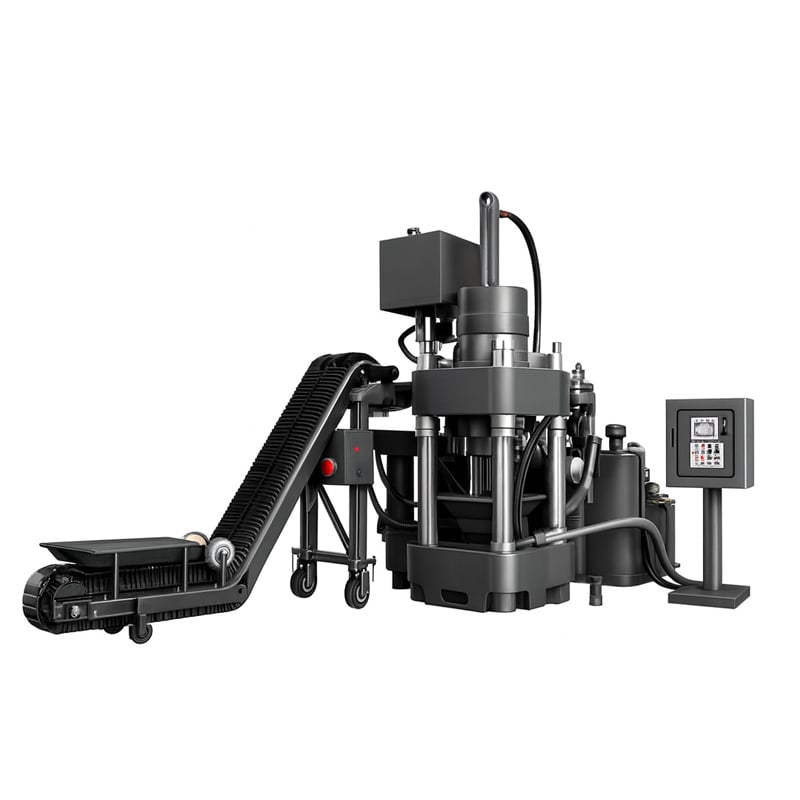

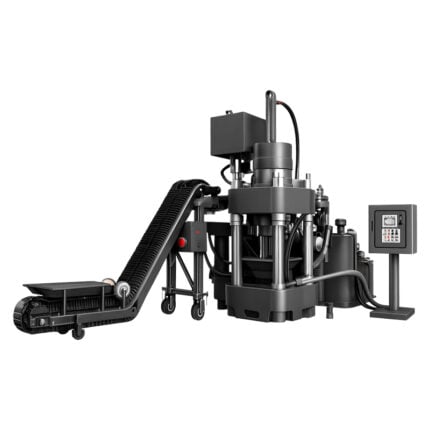

The Briquetting Machine for Foundry Waste is designed to compress loose metal chips, shavings, and suitable foundry scrap into dense, compact briquettes for efficient recycling. Featuring a powerful hydraulic system, durable construction, and reliable operation, this machine helps reduce waste volume, improve material handling, and lower transportation costs. Ideal for foundries, metal processing plants, and recycling facilities, it supports sustainable waste management while maximizing scrap recovery value. Its customizable configuration ensures efficient performance across different metal waste processing applications and production requirements.
100 vorrätig
At ARZIR, we believe in the power of collaboration. Our trusted partnerships with foundries, CNC machining shops, metal recyclers and biomass producers around the world strengthen our capabilities and broaden our offering. Together, we deliver briquetting machine solutions that transform loose steel turnings, aluminium chips, copper swarf, cast iron borings and sawdust into dense, furnace-ready briquettes — recovering valuable cutting oil and coolant, reclaiming floor space and unlocking real value from every kilogram of metal scrap or biomass residue. These partnerships allow us to share expertise, refine our hydraulic technology and consistently deliver high-quality machines backed by responsive service. Our commitment to performance is reflected in the long-term relationships we have built, and ultimately in the dense, high-yield briquettes our customers produce on every single shift.
Angebot einholenWe installed the ARZIR hydraulic briquetting machine for our steel turnings and cast iron borings two years ago. Briquette density is consistently above 6.0 g/cm³, our furnace yield has improved significantly and the recovered cutting oil pays back the line every single quarter.
Three years in, our ARZIR briquetting machine is still pressing tight, transport-ready briquettes of aluminium chips, copper swarf and brass turnings. Downtime is minimal, the hydraulic system runs cool, spare parts arrive fast and the after-sales engineers genuinely understand our process.
A briquetting machine is a hydraulic press that compresses loose metal chips, turnings and swarf into dense, easy-to-handle briquettes — without any binder or heat.
Material is fed into the pre-press chamber, then compacted by the main cylinder at 1,800–3,150 bar of specific pressure. The final briquette reaches a density of 5.5–6.8 g/cm³ for steel and 2.4–2.7 g/cm³ for aluminium — close to the density of solid metal.
ARZIR briquetting machines are designed for a wide range of metallic and non-metallic chips, including:
• Steel & cast iron turnings, milling chips and grinding sludge
• Aluminium chips, foil scrap and extrusion off-cuts
• Copper & brass chips and machining swarf
• Stainless steel turnings and shavings
• Magnesium, zinc, titanium and other non-ferrous chips
• Sawdust, wood shavings and biomass (with specific tooling).
Capacity varies by model, material type and chip condition. Typical throughput is:
• Small models (BM-100/200): 150–400 kg/h
• Medium models (BM-400/630): 800–2,500 kg/h
• Heavy-duty models (BM-1000/1500): 3,000–6,000 kg/h.
Cycle time is as short as 15–30 seconds per briquette, with fully automatic continuous operation for 24/7 production.
Every ARZIR briquetting machine meets CE / ISO safety standards and includes:
• Fully enclosed safety guarding around all moving parts
• Emergency stop buttons at every operator station
• Hydraulic overload protection and pressure relief valves
• Safety light curtains on feeding hopper (optional)
• Temperature and oil-level monitoring on hydraulic tank
• Interlocked access doors for inspection and maintenance.
Standard lead time is 60–90 days for small to medium models and 4–6 months for heavy-duty or fully customized briquetting lines with conveyors, centrifuges and chip dryers.
All ARZIR briquetting machines come with a 2-year warranty on the main frame and hydraulic system, plus lifetime technical support and a free supply of critical wear parts during the first year.
ARZIR offers a complete range of hydraulic briquetting machines, including:
• Horizontal briquetting presses (BM-100 to BM-1500) — for steel, cast iron and aluminium chips
• Vertical briquetting presses — compact footprint for limited-space workshops
• Double-cylinder briquetters — for high-density briquettes of hard alloys and copper
• Complete turnkey briquetting lines with chip crusher, centrifuge / dryer, conveyor and briquette discharge system.
ARZIR briquetting machines deliver pressing forces from 100 to 1,500 tons, producing briquettes with a diameter of Ø50 mm to Ø150 mm (cylindrical) or 60×60 mm to 150×150 mm (square / rectangular).
Briquette weight ranges from 0.3 kg to 5 kg each, with final density of 5.5–6.8 g/cm³ for steel — meeting the requirements of steel mills and foundries for direct furnace charging.
Briquetting transforms loose, oily and bulky chips into clean, dense and traceable blocks. Key benefits include:
• 10–20× higher selling price compared with loose chips
• Up to 90% recovery of cutting oil and coolant for reuse
• 80% less storage space and lower transport cost
• Higher melting yield in furnaces (less burn loss & oxidation)
• Cleaner, safer workshop environment and easier scrap handling.
ARZIR briquetting machines are controlled by Siemens S7-1200 / S7-1500 PLC with industrial HMI touchscreen, offering fully automatic, semi-automatic and manual operation modes.
Optional upgrades include remote IoT diagnostics, production data logging, recipe management for different materials, and integration with MES/ERP and upstream chip-conveying systems.
Yes. ARZIR offers full turnkey service including factory layout design, foundation drawings, on-site installation, commissioning, operator training and production tuning by senior engineers.
Our after-sales network covers 100+ countries, with multilingual technical support, 24/7 remote diagnostics, fast spare-parts delivery and an optional on-site service contract.
Factory direct, no middlemen — we deliver the best price and full control over every step of production.
Quote Now
Enjoy peace of mind with a three-year warranty and free replacement of core wear parts.
Quote Now
Our multilingual team speaks English, Spanish, French, Arabic, Russian and more — efficient communication for every market.
Quote Now
Every machine goes through 36+ inspection checkpoints and 72-hour load testing before shipment.
Quote Now
Siemens PLC, intelligent HMI and remote IoT diagnostics deliver higher efficiency and lower downtime.
Quote Now
Serving 100+ countries with on-site installation, training and 24/7 online engineer support.
Quote NowDiscover how ARZIR can meet your metal recycling needs. Click below to send your inquiry and receive a tailored solution from our expert team. Let's work together for your success!
| Gewicht | 999 kg |
|---|---|
| Maße | 2020 × 1750 × 1800 cm |
| Brand | ARIZR |
| Function | Briquette |
| Lead Time | 45 Days |
| Payment Term | LC, TT |
| Price Term | EXW |
| Warranty | 3 Years |
